LIGHT DUTY 3 INCH RUBBER CASTERS
Part Numbers
Series-Wheel Diameter/Wheel Width/Bearing/Wheel Material-Brake Options-Mounting Options

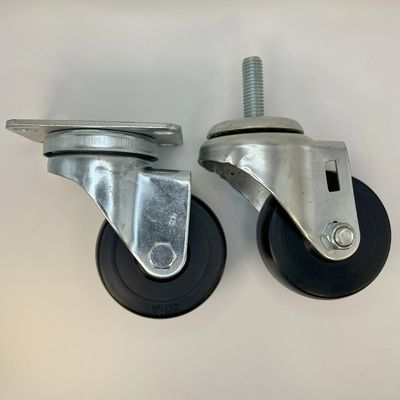

LDS-313HR (Left)
LDS-313HR-TS1 (Right)
Caster Specifications
Hard Rubber - 125 lb capacity / 60 Shore D
Soft Rubber - 100 lb capacity / 80 Shore A
Nylon sleeve bushing
Temperature range: -40 F through 160 F
Wheels are non-marring
Brake Options
Top Lock (Vert Lock) Brake (-TLB)
Side (Cam) Lock Brake (-SB)
Total Lock Brake (-TTL)
Top Plate Mounting Options
Top Plate Options:
2-3/8" x 3-5/8" (standard)
3-1/8" x 4-1/8" (-TP3)
3-1/2" x 3-1/2" (-TP4)
4 x 4-1/2" (-TP5)
Threaded Stem Mounting Options
Threaded Stem Options:
1/2"-13 x 1-1/2" (-TS1)
1/2"-13 x 1" (-TS2)
Other stem sizes available
Expander Stem Mounting Options
Rubber Expanding Stem Options:
Measured by Tube Inside Diameter
7/8" (-11APP)
1-1/8" (-15APP)
1-3/16" (-17APP)
1-3/8" (-19CAPP)
1-1/2" (-19APP)
1-3/4" (-21APP)
Grip (Friction) Ring Mounting Options
Grip Ring Options:
7/16" x 1-3/8" (-GR1)
7/16" x 7/8" (-GR2)
7/16" x 2" (-GR3)
5/8" x 2-3/16" (-GR4)
7/8" x 2" (-GR5)
Other Mounting Options Available
If you don't see your specific caster type listed here, let us know. When in doubt, send us a picture of your caster, and we can match it up.
